Hot Melt Adhesive Film For Dyneema Fabric Bonding

UHMWPE fabric (Dyneema) features an extremely smooth and chemically inert surface, which makes it difficult for bonding. Traditional liquid glue easily causes debonding, hardening, whitening and poor water resistance. The hot melt adhesive film adopts solid adhesive film. After hot pressing, the adhesive evenly infiltrates the fiber gaps of UHMWPE fabric and forms a high-strength flexible composite layer after cooling, perfectly solving the problem of poor adhesion and delamination of UHMWPE material.

No solvent and no primer required. Under controlled temperature, pressure and time, the molten adhesive penetrates into the fiber gaps of UHMWPE fabric. It forms a firm and flexible bonding structure through physical embedding and surface adsorption without damaging the original high strength, cut resistance and impact resistance of Dyneema fabric.

一,Product Composition

100% polyolefin resin

二,Property Index

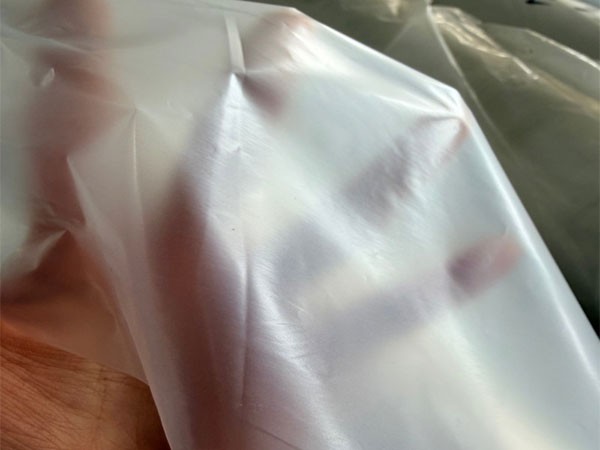

Appearance: semi transparent thin film

Softening Point(Ring and Ball) : 170±5℃

三,Specification

The regular adhesive film thickness: WT-E25-1 0.05mm WT-E25-1 0.10mm

Special specifications can be customized.

四,The Package

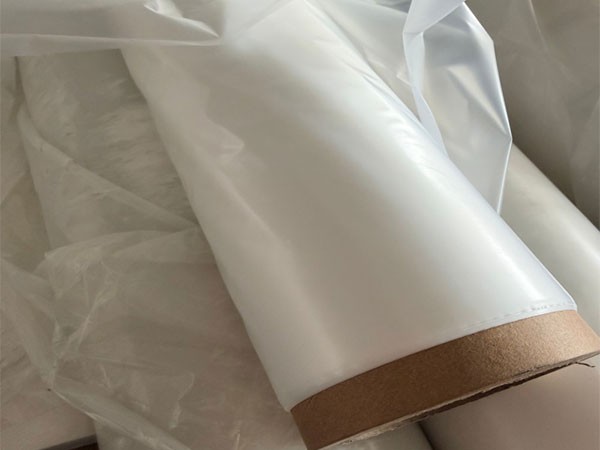

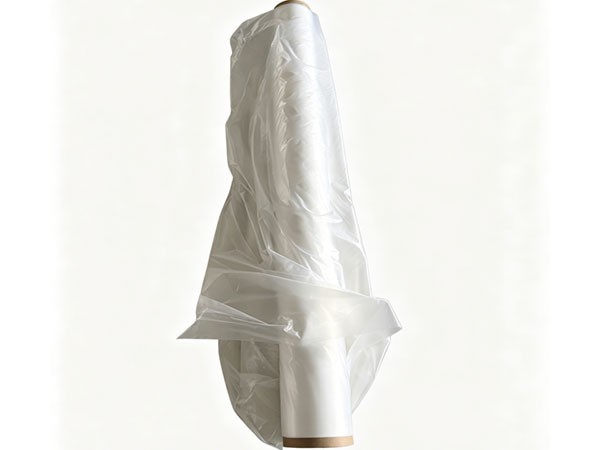

Rolled, 500-1000 meters per roll.

1,Firm Adhesion & No Delamination
The molten adhesive penetrates into fibers with high peel strength. No debonding after repeated bending.
2,Soft Texture
Solid film lamination without glue accumulation. The composite fabric remains soft without hard spots or whitening.
3, Water Washing & Abrasion Resistance
Excellent resistance to washing, sweat and aging. No blistering or falling off during long-term service.

4,Eco-friendly & Odorless
Solvent-free, zero VOC and formaldehyde-free. Compliant with RoHS for personal protective products.
5, High Production Efficiency
No glue mixing or drying. Lamination is completed within seconds, compatible with hot press and roller lamination machines for mass production.

The hot melt adhesive for Dyneema fabric bonding can be used for bonding materials such as fiber fabrics, plastics, metals, wood, ceramics, etc. It is widely applied in the construction and home decoration industry, labeling, interior parts of the automotive industry, electronics industry, packaging industry, communication industry, etc.

Instructions for Use

1)The operating temperature of this bonding film for Dyneema fabric is 160-200℃. The surface of the objects to be bonded should be dry and without any oil stainless. if necessary, the surface should be roughened.

2)Place the Dyneema composite bonding film on the object to be bonded, heat it to above the melting temperature, apply appropriate pressure, peel off the release paper, then heat it to above the melting temperature again, and then laminate the other bonding surface, apply appropriate pressure, and it will cure instantly during cooling to complete the bonding.
