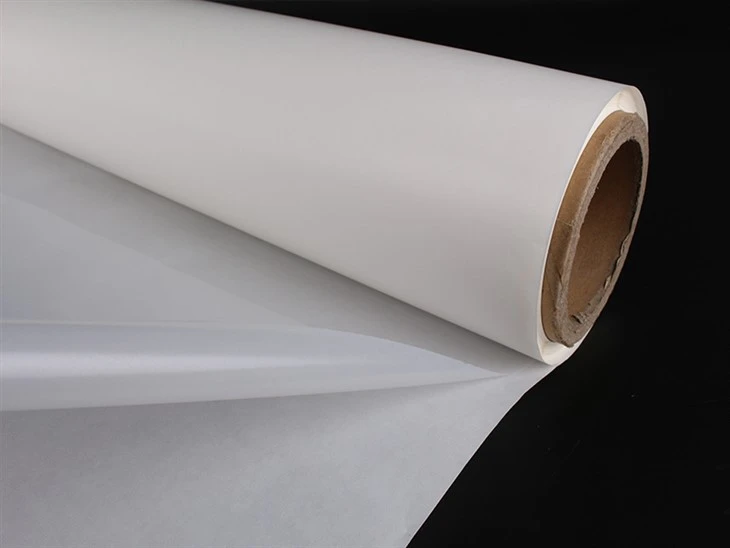

Metal Hot Melt Adhesive Film
The metal hot melt adhesive film is a thermoplastic hot-melt adhesive film. It is composed of release paper and hot melt adhesive that can be repeatedly heated and bonded. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, and has good feel and resilience, and excellent cold resistance.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Introduction
The metal hot melt adhesive film is a thermoplastic hot-melt adhesive film. It is composed of release paper and hot melt adhesive that can be repeatedly heated and bonded. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, and has good feel and resilience, and excellent cold resistance.
Product Specification
The Regular thickness is 0.01~0.2mm
With release paper or without release paper
The max width is 160CM
All is also can be customized according to the customer`s request
Product Physical Property Sheets
|
Physical property |
Performance Index |
Units |
Testing Method |
|
Melting Point |
125±5 |
℃ |
ISO11357-1 |
| Softening Point(Ring and Ball) |
140±5 |
℃ |
Ring and Ball |
|
Melt flow index |
20-40 |
g/10mins |
2.16KG,160℃ |
Product Packaging
100M2/Roll,Woven bags lined with plastic bags or Carton.
It can be customized according to the customer request.
Application
The Metal sticking hot melt adhesive film is mainly used for bonding epoxy sheet, metal products, ABS, nylon, cotton, chemical fiber, polyester cloth, nylon, nylon, Oxford, PVC, PU and other materials.
Recommended hot pressing temperature: 140-180℃ hot pressing time 10-40 seconds, pressure 0.2-0.6Mpa
The process temperature, time and pressure can be adjusted according to the specific material.
Storage condition
Store in cool and dry condition.
Product Operation Instructions
Operating temperature is 130-200 ℃. The surface of the Polyamide PA hot melt adhesive film material should be dry and clean without oil. Sometimes glued objects should be roughening.
Place the film onto the object. Heat it to above the melting temperature, press it properly, tear off the release paper, heat it to above the melting temperature, then stack the other bonding surface, press it properly, and cure instantly in cooling to complete the bonding.
